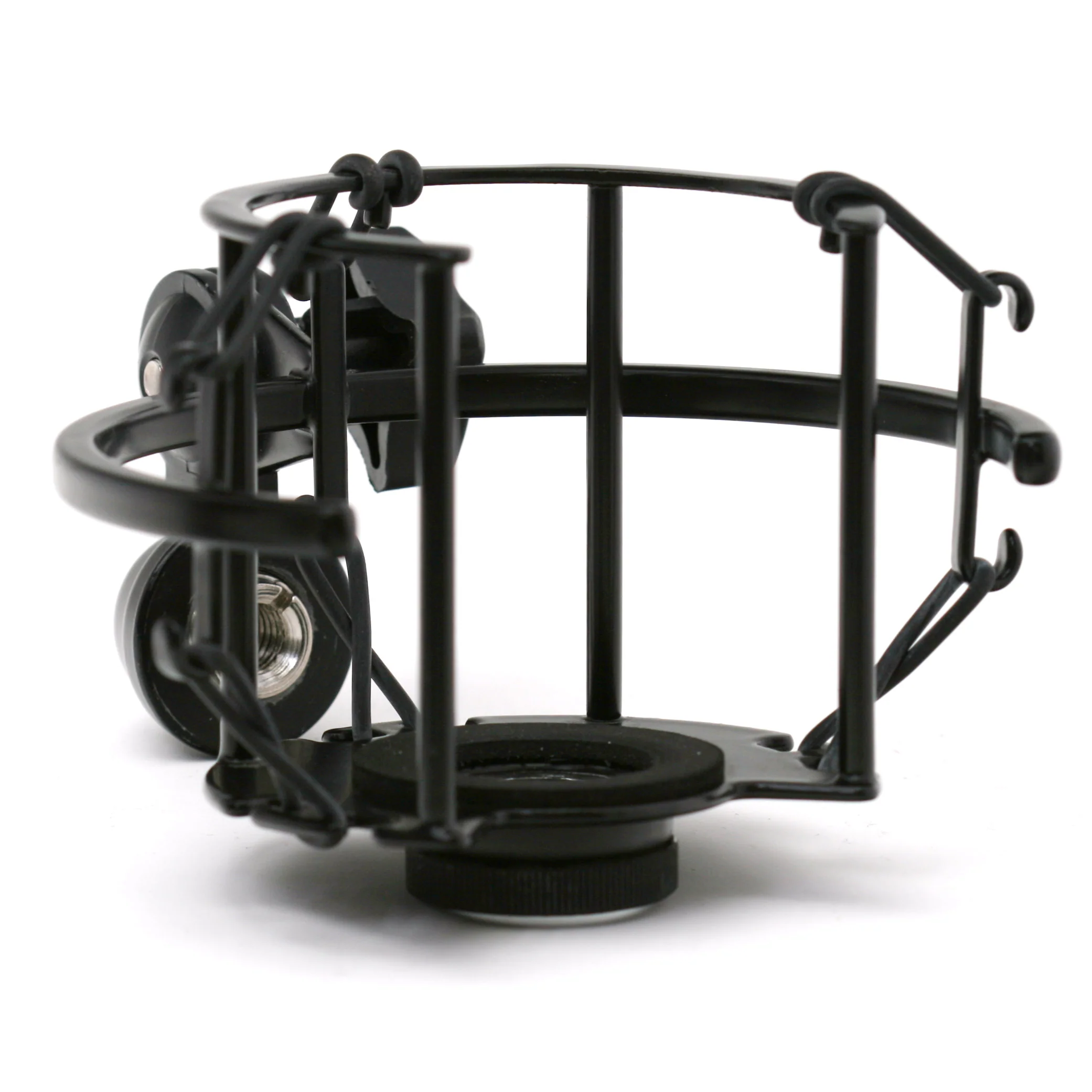

This is the Roswell Pro Audio "Cutaway™" shockmount, redesigned to fit the MicParts FET LDC microphones.

The "cutaway" design allows close positioning to a source. Mechanical isolation is provided by O-rings that do not resonate.

Superior Isolation

Typical shockmounts use elastic or rubber bands that can resonate sympathetically with your source material. That is, if the instrument you're recording produces a frequency that excites the elastic cords, then your shockmount will vibrate like the strings of a bass guitar. That sound would be heard by the microphone, and can't be fixed or EQ'd later. The sound of the shockmount colors your track.

The Cutaway™ design uses non-resonant silicone O-rings rather than elastic bands. These O-rings provide mechanical isolation without the risk of sympathetic vibration.

This design allows you to record your instrument, not your shockmount.

Security

Cheap shockmounts grip the mic via a spring clamp. This design can fatigue over time, increasing the risk that the mic drops out of the mount.

The felt pad used to line the inside of the spring clip can compress and shift, allowing metal-to-metal contact from mount to mic that can damage the finish on the microphone.

The Cutaway mount avoids all these problems; the mic screws onto the mount, but makes no other contact with the shockmount cage. The mic is securely held, won't vibrate free, and won't be damaged by the shockmount.

Durable Materials

The Cutaway mount's frame and cage are made of metal, not plastic. With proper maintenance, these parts should last a lifetime.

The O-rings are made of silicone rubber. Depending on environmental factors and usage, they should last for several years, but will eventually need to be replaced. We include a few spare with each mount. Additional O-ring sets can be purchased here.

Open Cage Design

The front of the mount's cage is open, to allow close positioning of the mic to a source.

Eliminating bars and mechanisms from the front of the microphone also eliminates unwanted acoustic reflections and shadowing that could color the sound of the microphone.

Compatibility

This mount fits the MicParts S-87, S-47, S-12, T-47, T-12, and T-67 microphones. It does not fit the S3 series. It does not fit the V-47, V-47 LE, 12-251, or V-12 tube mics, all of which are both far too tall to work with this mount design, and whose threads also do not match this mount.

Here are some 3rd party mics that this mount is known to fit:

Audio-Technica AT2020
Digital Reference DR-CX1
MXL CR78

It does not fit the AT2035, AT3035, or AT4050; these models do not have threads on the XLR shaft. It does not fit the Studio Projects C1 for the same reason.

It does not fit the MXL V67G or MXL 440 or any other mic whose mounting threads are recessed within the lower part of the mic body.

It does not fit the Rode NT1-A or the black NT1; both of these microphones use a smaller diameter XLR shaft than this mount expects.

This version of the Cutaway mount does not fit the Roswell Mini K microphones, or the MicParts S-25 / T-25 / S-25 TT; all of those mics fit the Cutaway mount for Mini K microphones.

We have no further compatibility information than what is shown here.

Thread Specifications

The female thread for mic attachment is M22 metric.

The female threads for STAND attachment are the US standard, 5/8''-27. We include an adaptor; see below.

Included

The package includes one shockmount, two spare O-rings, and a thread adaptor for European mic stands.

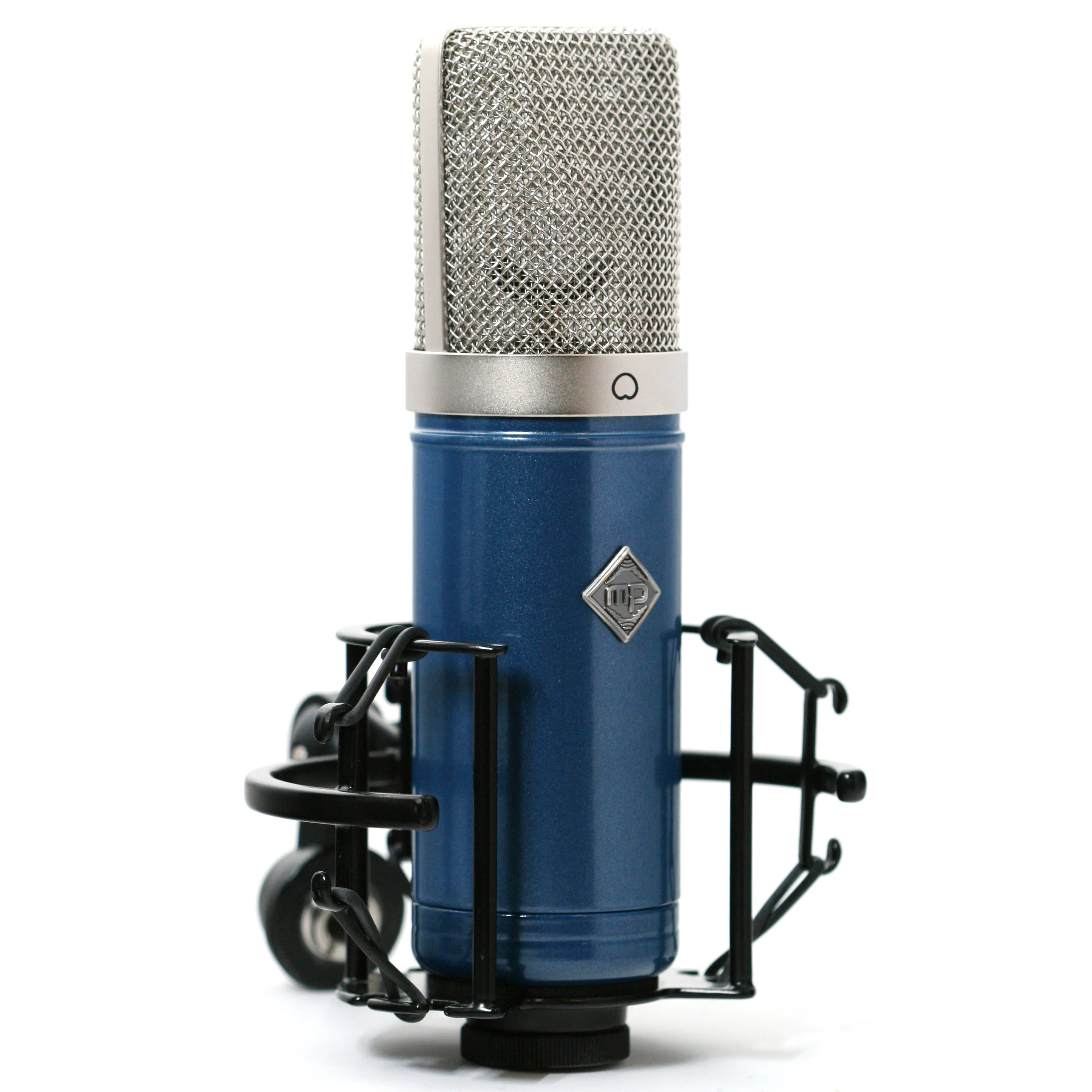

The photos show the mount with our S- and T-series metalwork (in metallic gray and blue powdercoat colors), and an AT2020. Those microphones are not included with the mount, which you might think would be obvious, except that someone asked.

Shockmounts

Cutaway Shockmount (MicParts LDC)

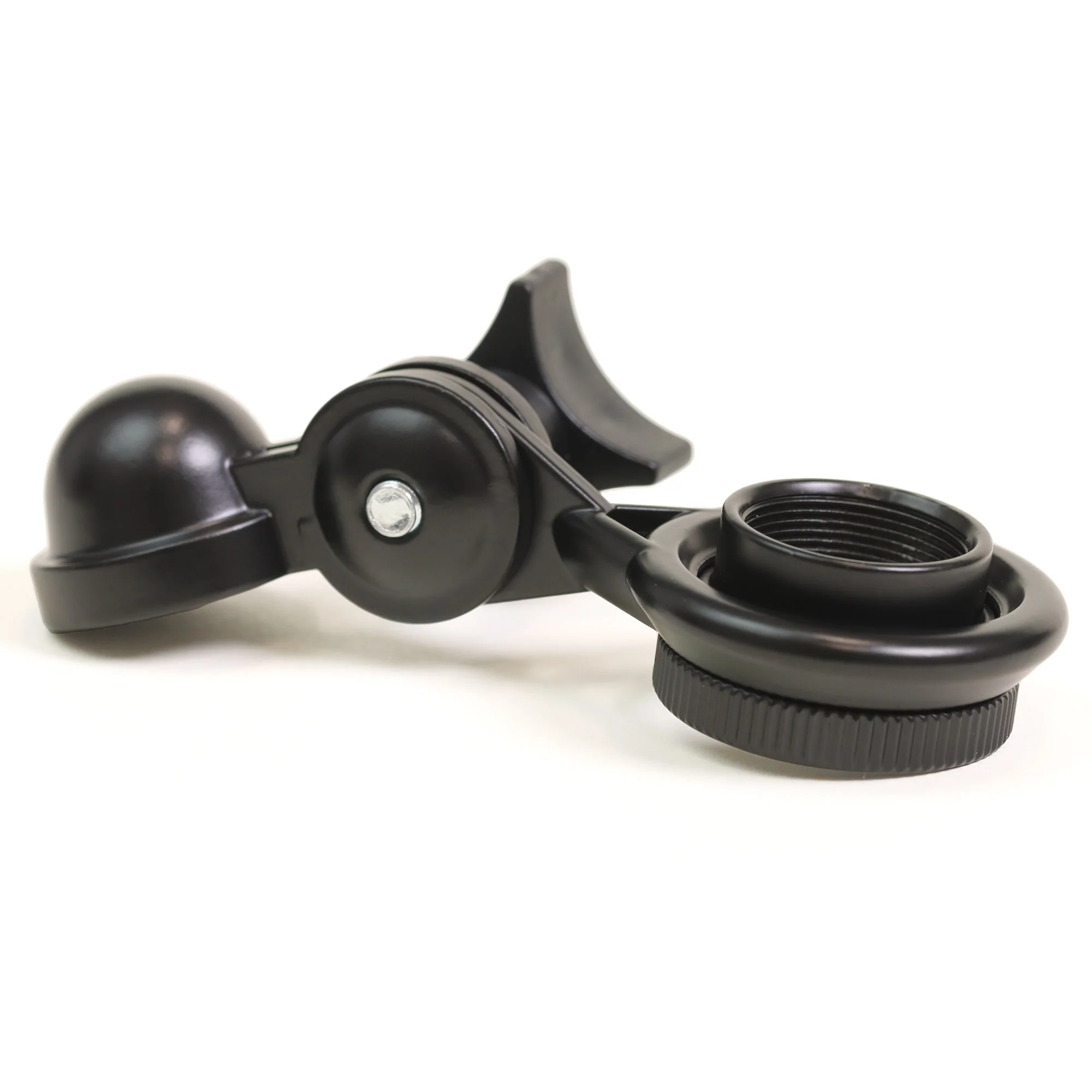

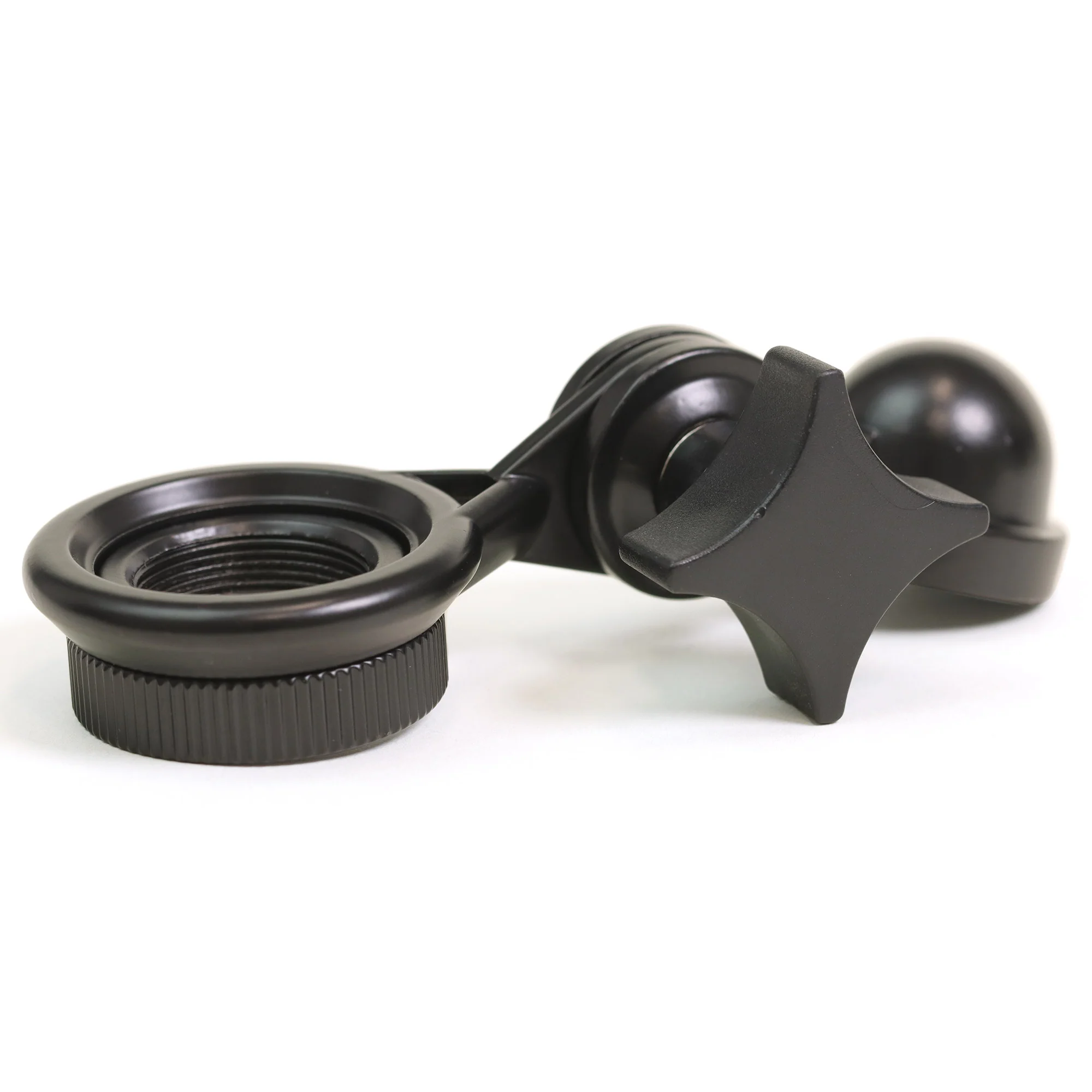

Swivel Mount

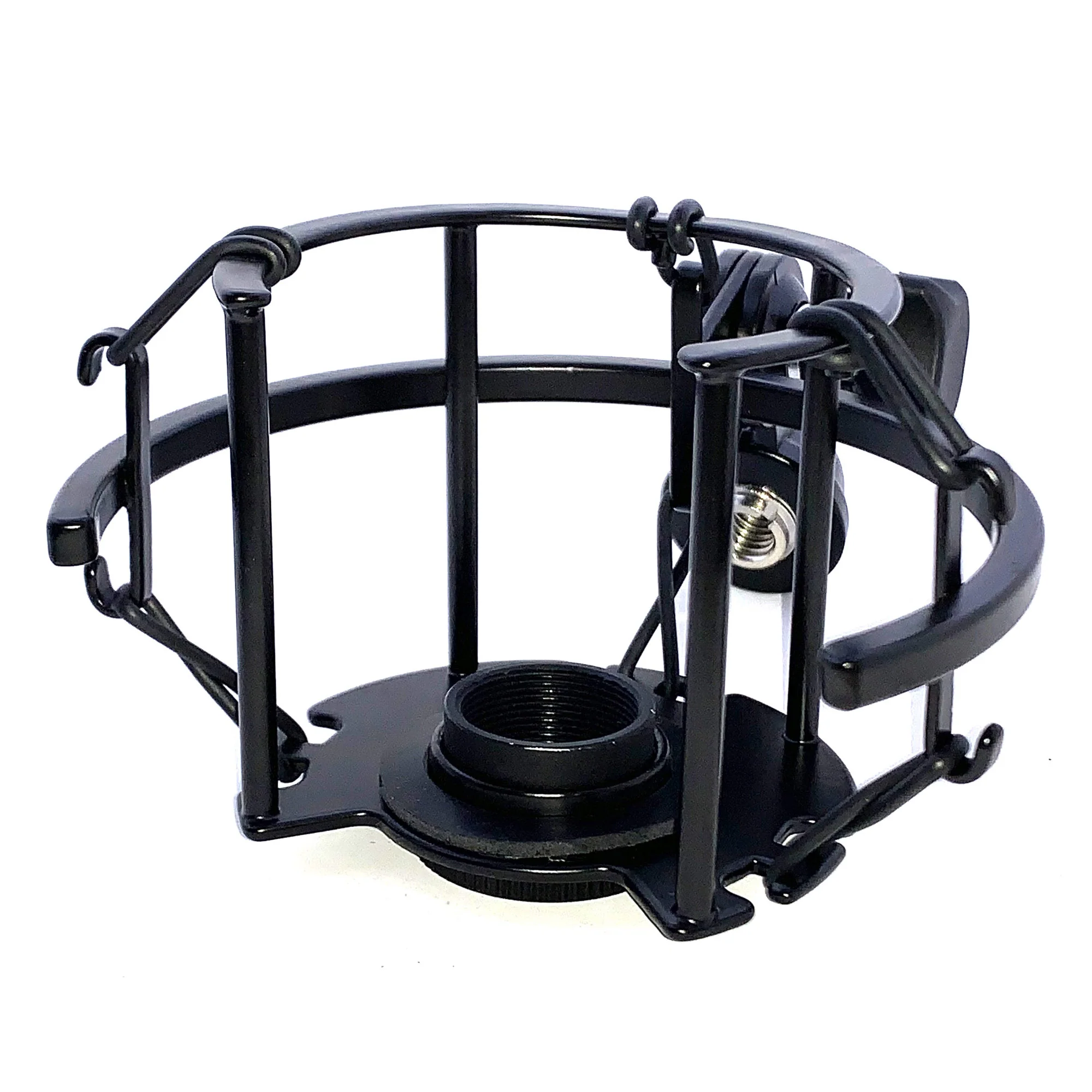

Cutaway Shockmount for Mini K Series

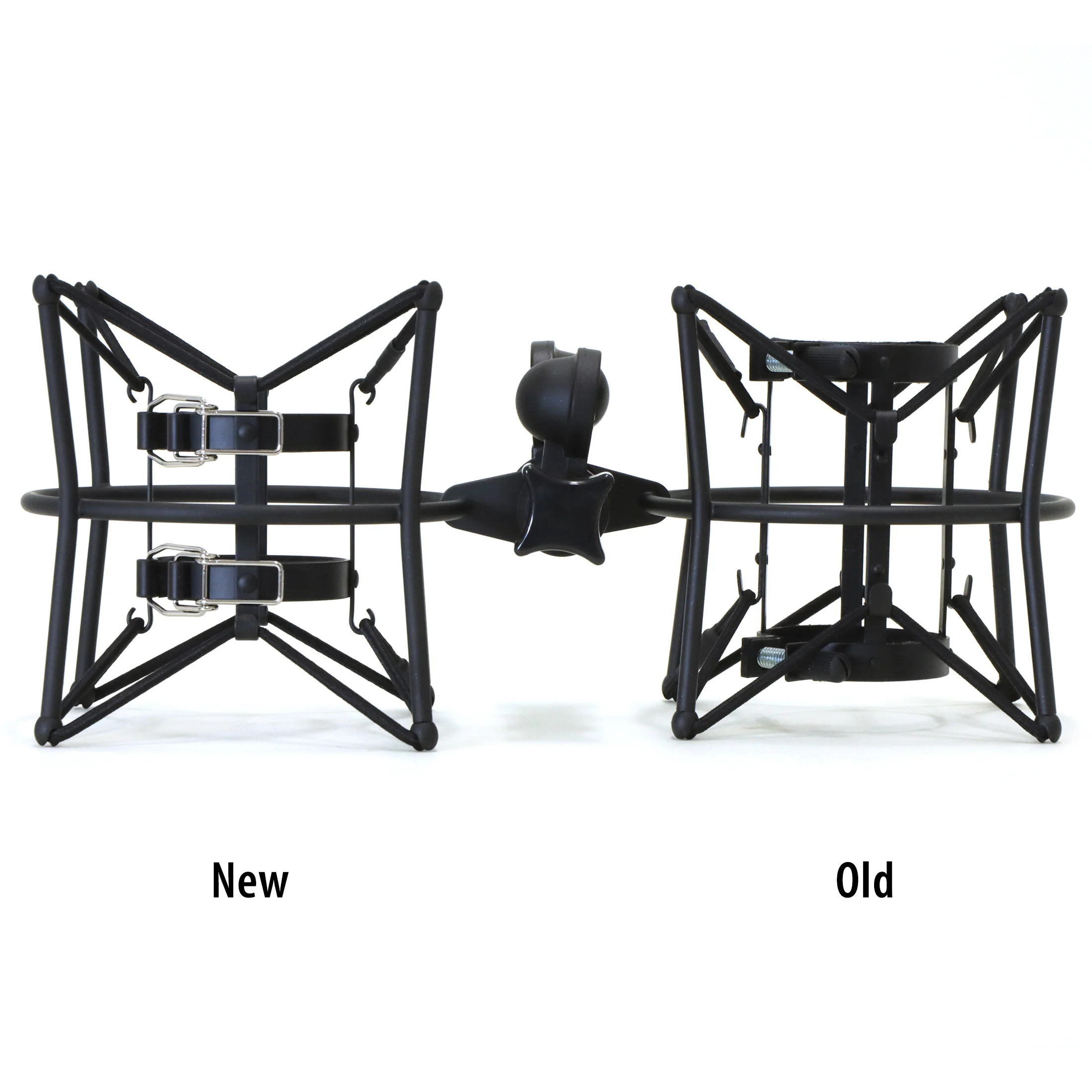

Mic Clamp Upgrade for Tube Mic Shockmount

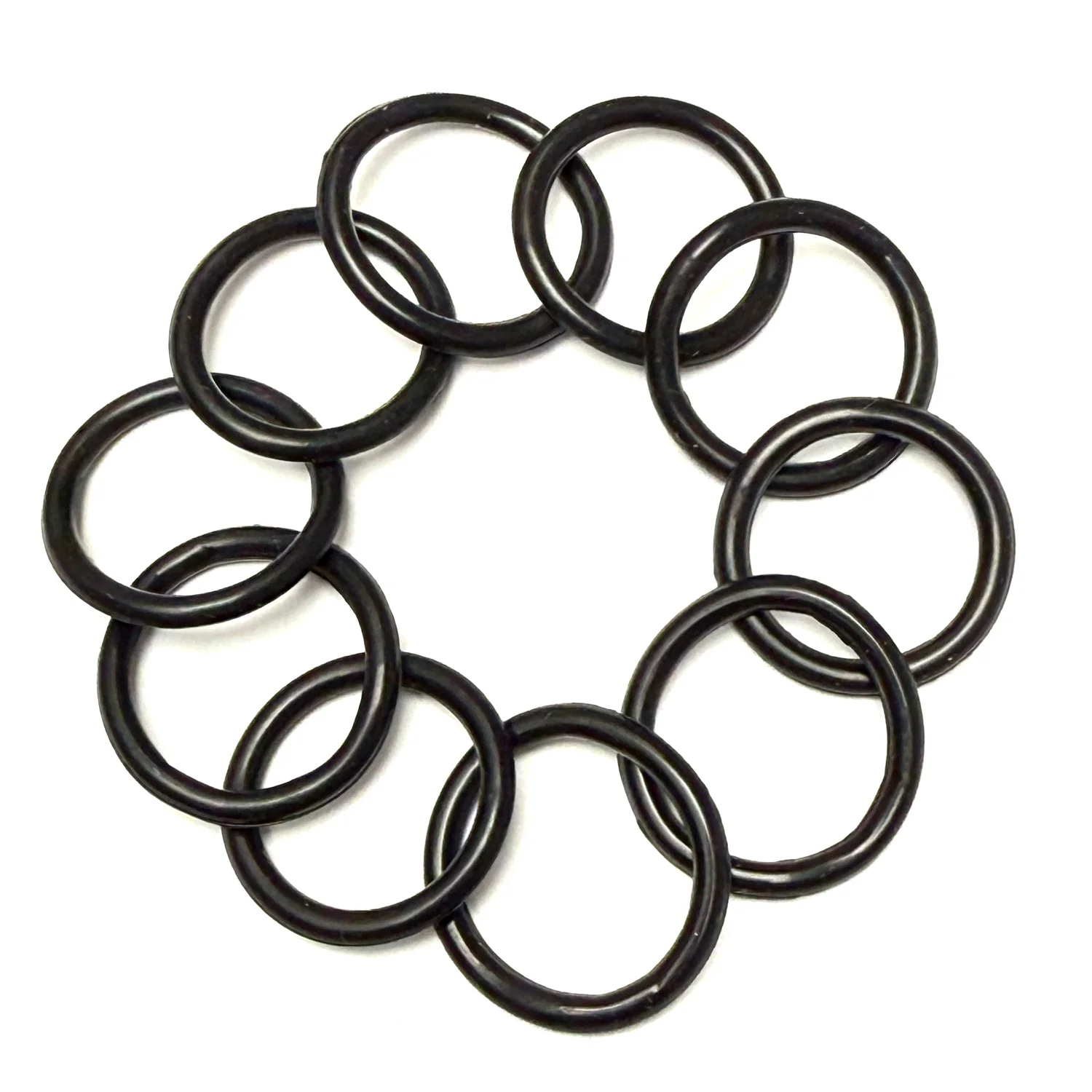

O-rings for SDC Shockmount

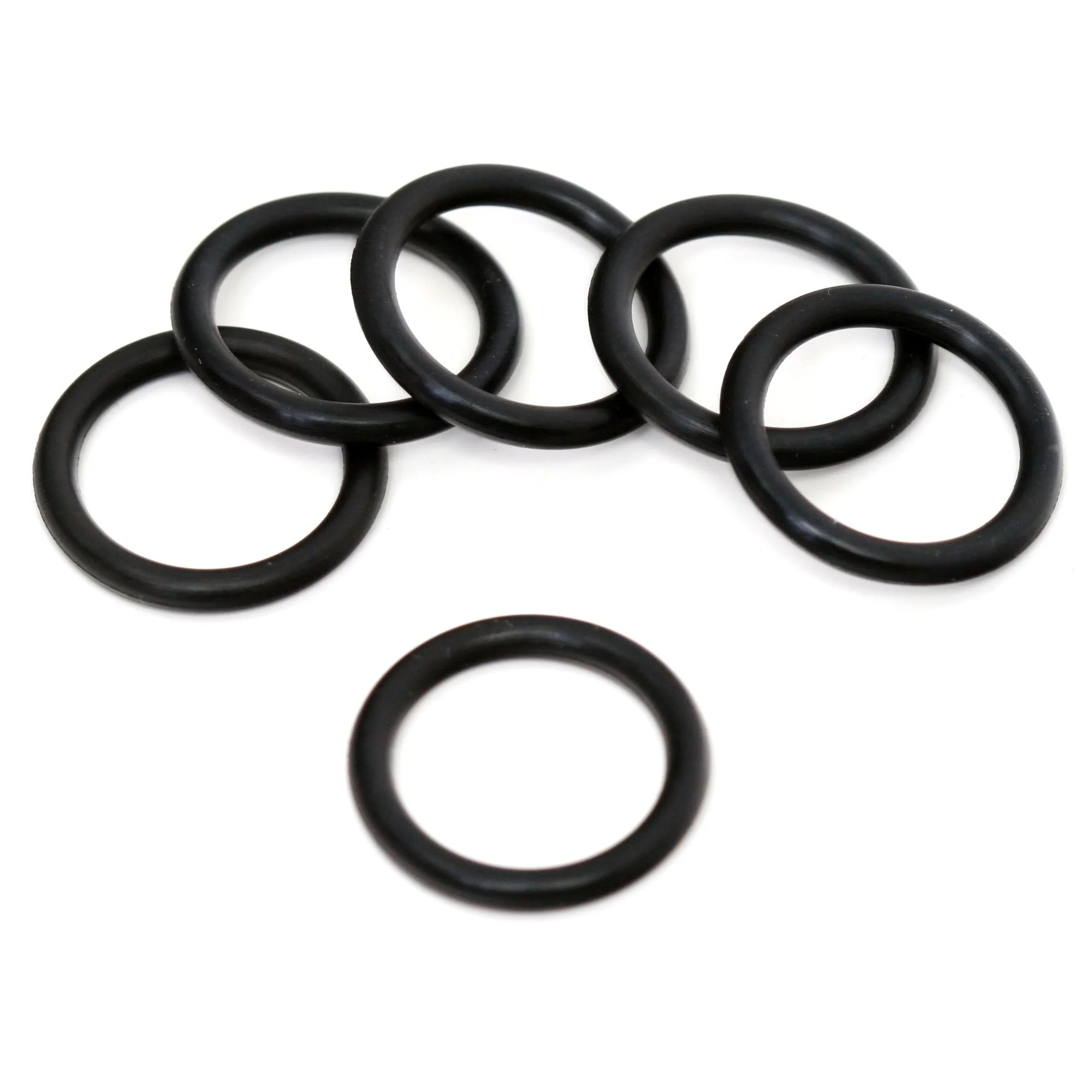

O-rings for Cutaway shockmount

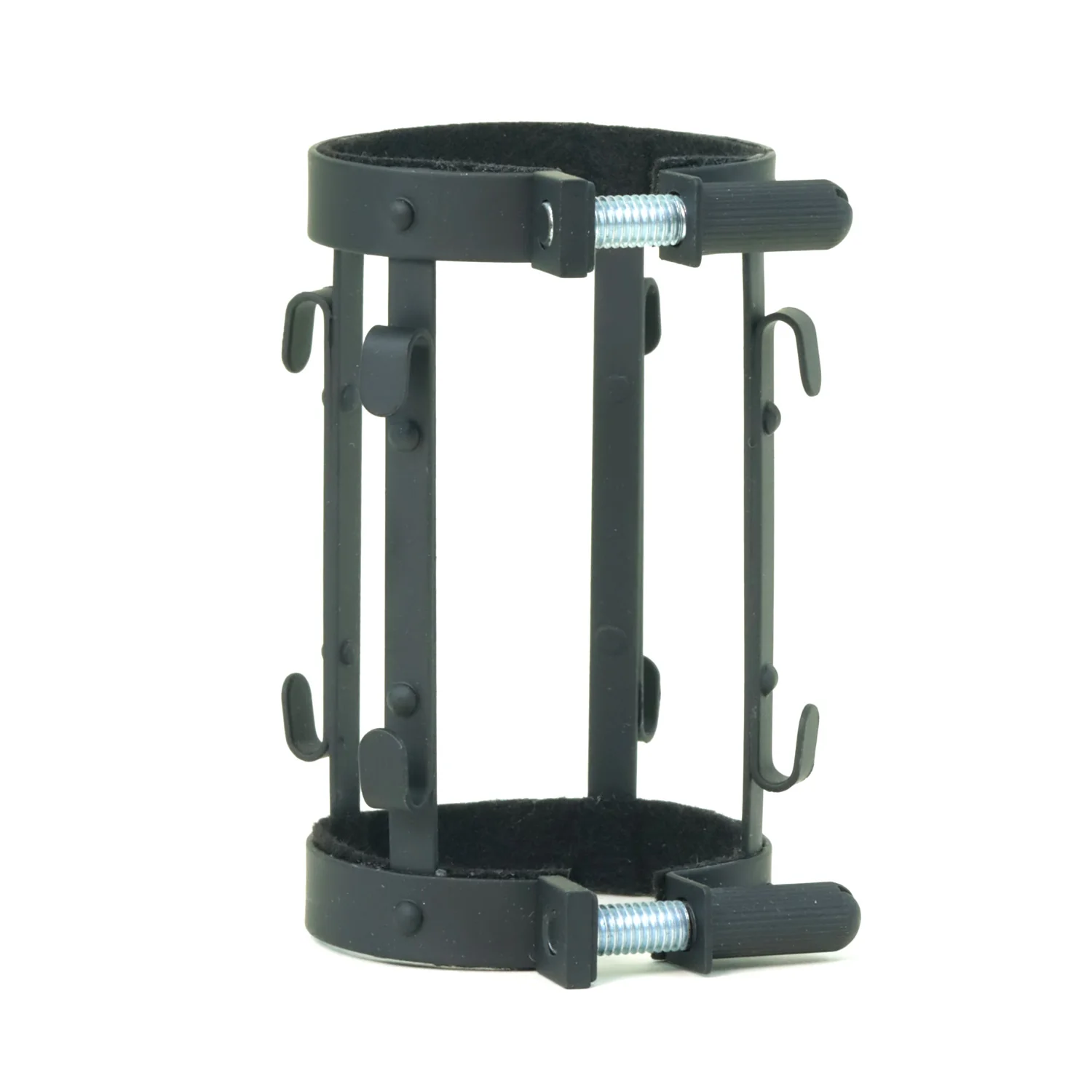

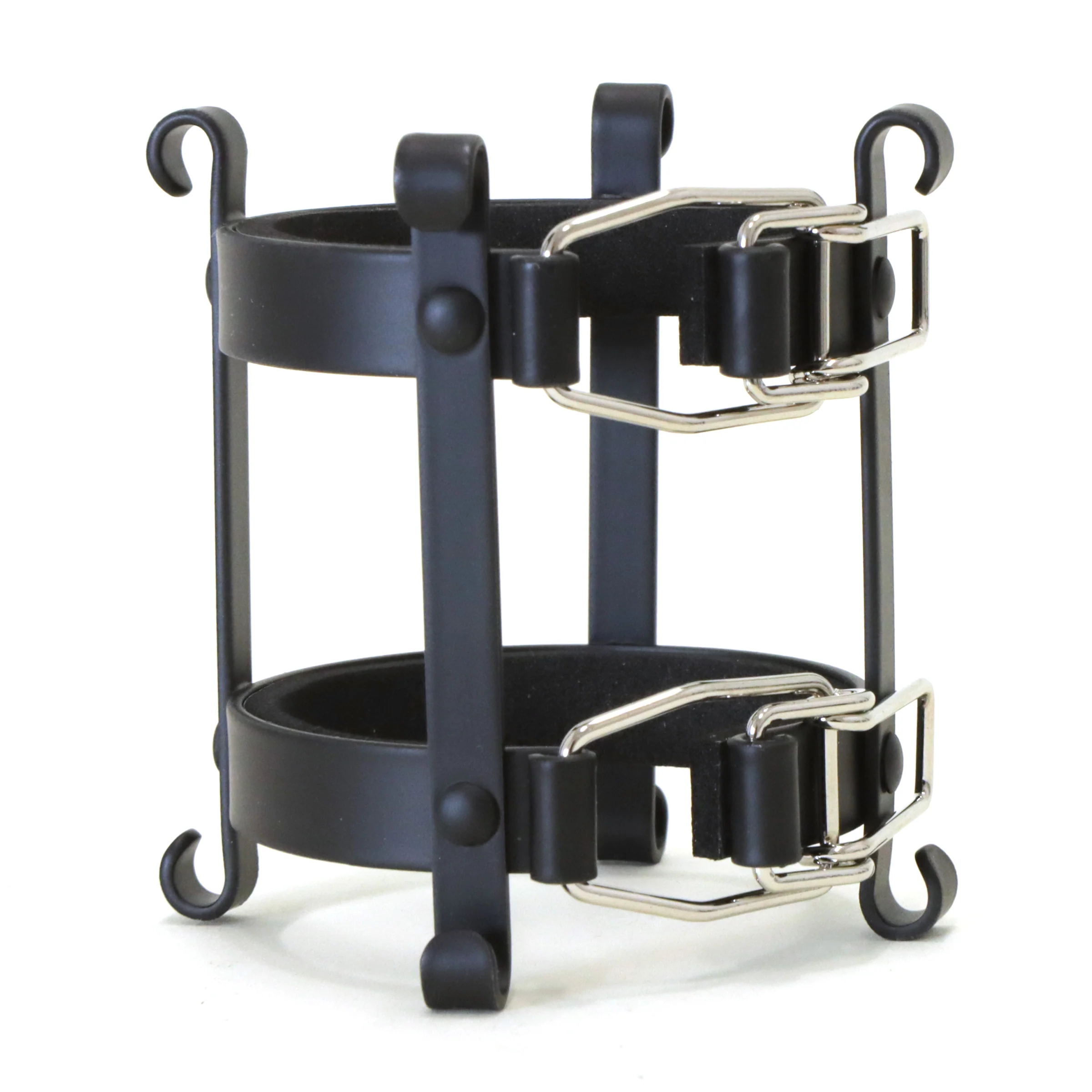

Tube mic clamp
